Furniture/ cabinets
Hettich systems for top or bottom running sliding doors create elegant frontage solutions. In the bedroom and living room, sliding doors make the most or storage space. Unobstructed access, doors do not intrude into the room when they are open. Doors that glide gently and quietly are perfect for creating peaceful living space.

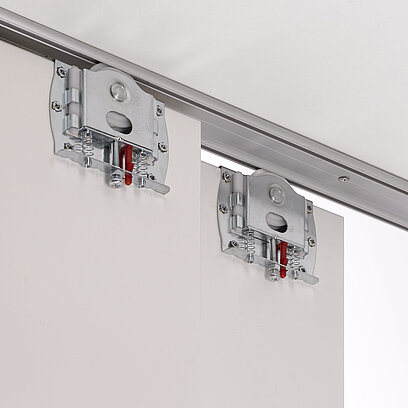

TopLine 2
Sliding door system for medium sized cabinets doors in woods. Inset double-barrel system with lower guide profile
Product information
- 2-track, top-running sliding door system
- Inset door position
- For wooden doors
- Door weight: up to 25 kg
- Screw-on runner profile
- Length of runner profile: 2000 mm
- Wooden door thickness: min. 16 mm
SlideLine
Hettich sliding door system SlideLine.
Bottom running sliding doors stand on rollers along their bottom edge and are stabilised by a guide at the top edge of the door. Given the uncomplicated cabinet body construction, predominantly low door weights and straight forward installation, bottom running doors are seen as the optimum gateway to constructing sliding door cabinets.
The SlideLine 12 sliding door system from Hettich Do-It-Yourself scores with ease of installation. With this system you don't need any router cutter or drill bit because all elements simple screw into place.
Product information
- 1 or 2-track, top running sliding door system
- Inset door position
- For wooden doors
- Door weight up to 25 kg
- Screw-on runner profile
- Length of runner profile: 2000 mm
- Wooden door thickness: min. 13 mm
For small furniture and limited budgets: SlideLine 1 - plastic sliding door system.
- 2-track, top-running sliding door system
- Inset door position
- For wooden doors
- Door weight up to 12 kg
- Screw-on runner profile
- Length of runner profile: 2000 mm
- Wooden door thickness: 13-19 mm
Aluminium profiles for recessing into cabinet bases and top panels. Can be used for many different applications, also for heavy doors.
Product information
- 2-track, top-running sliding door system
- Inset door position
- For wooden doors
- Door weight up to 30 kg
- Runner profile for recessing
- Length of runner profile: 2000 mm
- Wooden door thickness: min. 13 mm
All round sliding door systems for simple screw on installation.
Product information
- 2-track, bottom running sliding door system
- Inset door position
- For wooden doors
- Screw on installation
- Door weight: up to 60 kg
- Length of runner profile: 2000 mm
- Door thickness: 18-24 mm

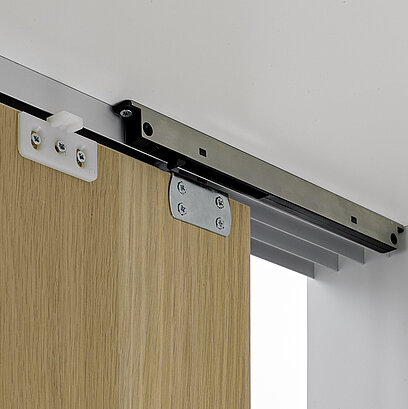

For heavyweights: SlideLine 16plus with Double-U-Guide profile
Product information
- 2-track, bottom running sliding door system
- Inset door position
- For wooden doors
- Screw on installation
- Door weight: up to 80 kg
- Length of runner profile: 2000 mm
- Door thickness: 18-24 mm
SlideLine 18 clearly enhances furniture in terms of function and design: whether for wall units or shelf systems, kitchen wall units, bathroom furniture or office cabinets. The versatile system is suitable for all common furniture constructions with wooden doors.
Product information
- Bottom running sliding door system
- 1-track and overlay or 2-track and inset
- For wooden doors
- Score with application diversity
- Experience soft-closing perfection in all directions – soft-opening, closing and colliding
- Easily and conveniently fitted
- Profiles can be installed on furniture after it has been assembled
- Either in overlay or inset applications, runner profiles simply screw to the shelf where they are securely held in place
- Can be glue mounted in inset applications
- Door weight: up to 30 kg
- Length of runner profile: 2000 mm
- Door thickness: 16-25 mm
WingLine 10 & 6
The WingLine 10 & 6 folding door system connected to the cabinet body side makes child's play of moving doors weighing even as much as 40 kg. Running action is precision controlled and velvety smooth. Bonus: side mounting with Sensys 8645i fast assembly concealed hinge.
Product information
- Folding sliding door system
- Inset door position
- For wooden doors
- Door weight 15 kg or 40 kg
- Runner profiles for screwing on
- Length of runner profile: 1200 mm
- Wooden door thickness: 16-25 mm
Service and Supply sources
Tips and tricks
-
-
Converting spaces below sloping ceilings with sliding doors
-
-
-
Make optimal use of alcoves with sliding doors
-
-
-
Sliding door fitting retrofitting
-
